Hamilton Spectrograph coordinates
coordinates for the Hamilton with dewar 6
as a PDF file

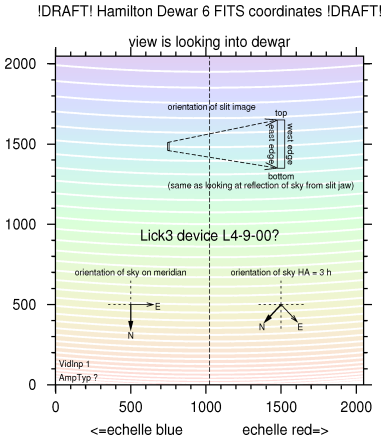

This diagram is a synthesis of the contents of what should be
several separate diagrams and documents.
The engineering diagram documenting the Hamilton focal plane
should not include
-
the device name of the CCD
-
the designation of the video input
-
the PANE coordinates
This is a draft. It all deserves double checking.
Please let me know if you find anything that seems awry.
The FITS coordinates can be redefined, but the current
coordinates indicate the manner in which the ucam
code writes the pixels into the FITS image array.
Steve Allen <sla@ucolick.org>
Initial deployment 2011-03-10T00:00
$Id: hamiltonD6.html,v 1.2 2019/12/18 18:09:15 sla Exp $
