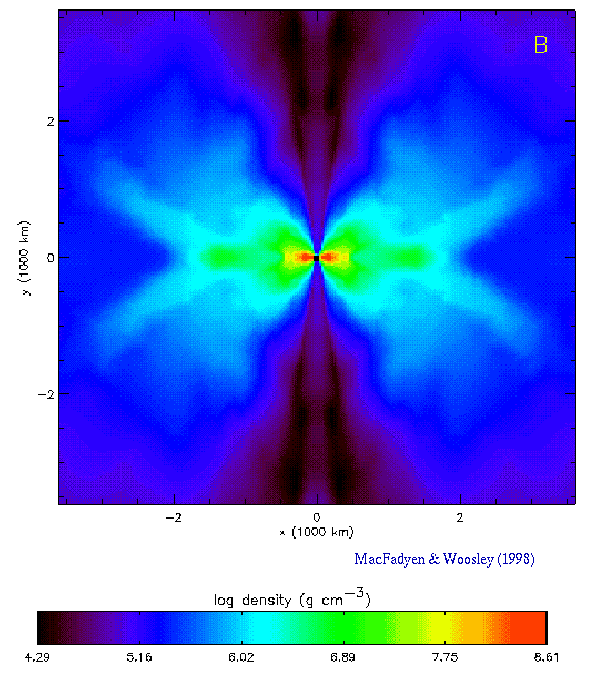

Late density structure on larger scale



A larger view of the density structure in Model 14A at a later time (in a calculation where no jet was initiated), 15.63 s. The inner disk with its higher density is unresolved here. The density along the polar axis has declined to 10**4 g/cm**3, approximately the mean density of the star.

Above picture: Gzipped Postscript
