Hamilton Spectrograph coordinates

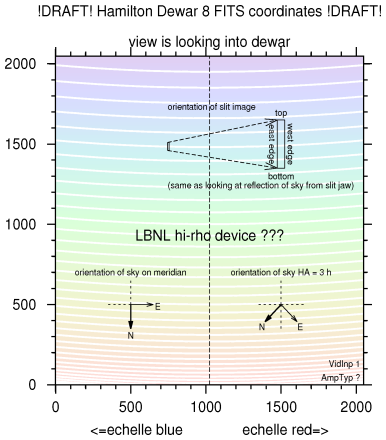

coordinates for the Hamilton with dewar 8
as a PDF file
This diagram is a synthesis of the contents of what should be
several separate diagrams and documents.
The engineering diagram documenting the Hamilton focal plane
should not include
the device name of the CCD
the designation of the video input
the PANE coordinates
This is a draft. It all deserves double checking.
Please let me know if you find anything that seems awry.
The FITS coordinates can be redefined, but the current
coordinates indicate the manner in which the ucam
code writes the pixels into the FITS image array.
As of 2011-02-22 the existing ucam/xvideo coordinate
system has its origin not at the FITS array origin,
but instead at coordinate 2048,0 in this diagram,
which is the lower right corner when someone is
looking into the dewar at the CCD.
Steve Allen <firstname.lastname@example.org>
Initial deployment 2011-02-28T20:00
