The Keck I Telescope High Resolution Spectrometer







The Keck Telescope HIRES Instrument makes

down arrow

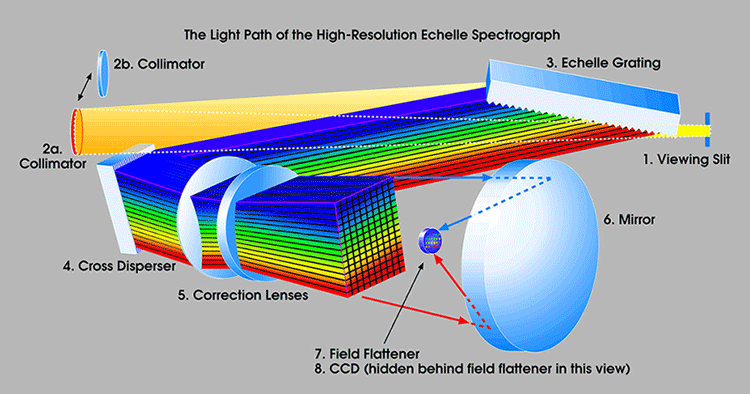

down arrow		 Light Path Schematic of HIRES


down arrow



down arrow

An echelle spectrum!

down arrow


down arrow


down arrow
Echelle Spectrum
courtesy N.A.Sharp, NOAO/NSO/Kitt Peak FTS/AURA/NSF



down arrow

Which is then unstacked to form the spectrum of a star

Solar Spectrum

Kitt Peak Solar Flux Atlas

Download HIRES Spectrograph Figure

Download Echelle Spectrum Figure
