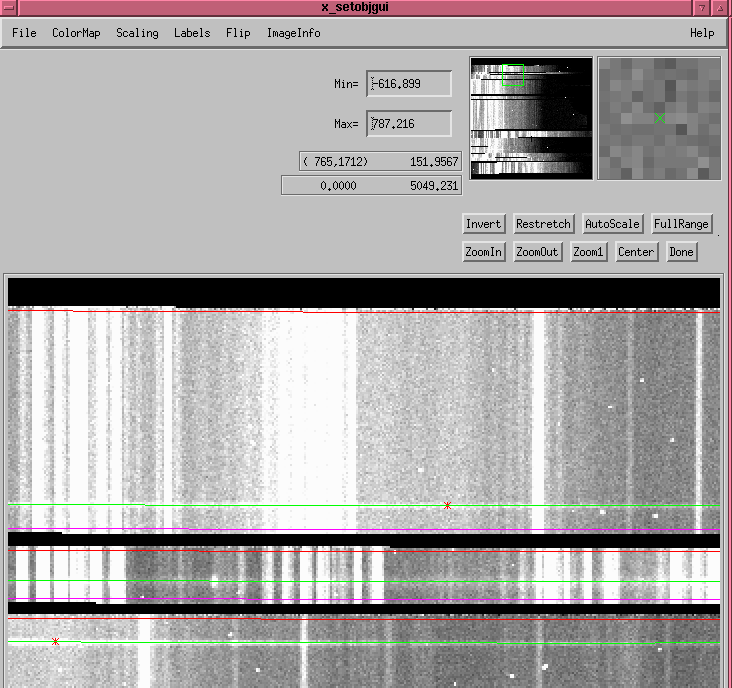

Screen shot of x_setobjgui
- The red line traces the top of the sky region for a given slit.
- The magenta lines traces the bottom of the sky region.
- The green lines trace science objects.
- The blue lines trace serendipitous objects.
- The red star indicates the position where the objects were found.
- The left-mouse-button (LMB) adjusts brightness/contrast.
- The right-mouse-button (RMB) centers the image on the cursor.
- The z/Z keys zoom in/out.
- The {/}, [/] keys pan up/down, left/right
- The t/b keys recenter the top/bottom edges of the sky region.
2004-06-10
