Architecture: Electronics
Devices
| Device | IP Address | Function | Location |
| shimmy.ucolick.org
shanevnc.ucolick.org |
128.114.176.21 | Support (VNC servers, GUIs) services. | Virtual Machine, CAT room |
| accession.ucolick.org | 128.114.176.111 | Support (KTL Keywords, Back-up) services. | Shane Computer Room |
| ao-lantr-ip.ucolick.org | 128.114.176.168 | ... | ShaneAO Cabinet: South |
| ao-agilent.ucolick.org | 128.114.176.179 |
ShARCS dewar temperature monitoring.
Automatically powers on and starts reading the temperatures, as soon as power is applied to ShaneAO. Connected to ShaneAO Power Controls Puluzzi device [C4]. |
ShaneAO Cabinet: West |
| real.ucolick.org | 128.114.176.200 | Real-time computer. | ShaneAO Cabinet: South |
| musher.ucolick.org | 128.114.176.202 | Woofer (ALPAO deformable mirror) control. | ShaneAO Cabinet: South |
| shred.ucolick.org | 128.114.176.216 | Support (dispatcher) services. | Virtual Machine, CAT room |
| karnak.ucolick.org (shade.ucolick.org) | 128.114.176.47 (128.114.176.204) | Support (Peeko, TTPeeko) services. | Shane Computer Room |
| covert.ucolick.org | 128.114.176.205 | Support (Data disk; Ion pump; Keyheader; Detector server) services. | Shane Computer Room |
| stealthie.ucolick.org | 128.114.176.206 | ShARCS detector control. | ShaneAO Cabinet? |
| mh-switch-ao.ucolick.org | 128.114.176.118 | Network switch | ShaneAO Cabinet/td> |
| saorouter.ucolick.org | 128.114.176.207 | ShaneAO router, providing communication to 3 Galil motor controllers from dispatchers saomot1, saomot2, saomot3. | ShaneAO Cabinet: North |
| ao-serial-1.ucolick.org | 128.114.176.208 | Lantronix, providing communication to ThorLabs Tip-Tilt Filter Wheel (TT Filter) from dispatcher service saomot5. | ShaneAO Cabinet: North |
| ao-serial-2.ucolick.org | 128.114.176.209 | Lantronix, providing communication to ThorLabs Science Filter Wheel (Sci Filter) from dispatcher service saomot5. | ShaneAO Cabinet: North |
| ao-power-1.ucolick.org | 128.114.176.225 | Pulizzi power switch A. | ShaneAO Cabinet: South |
| ao-power-2.ucolick.org | 128.114.176.226 | Pulizzi power switch B | ShaneAO Cabinet: South |
| ao-power-3.ucolick.org | 128.114.176.227 | Pulizzi power switch C | ShaneAO Cabinet: South |

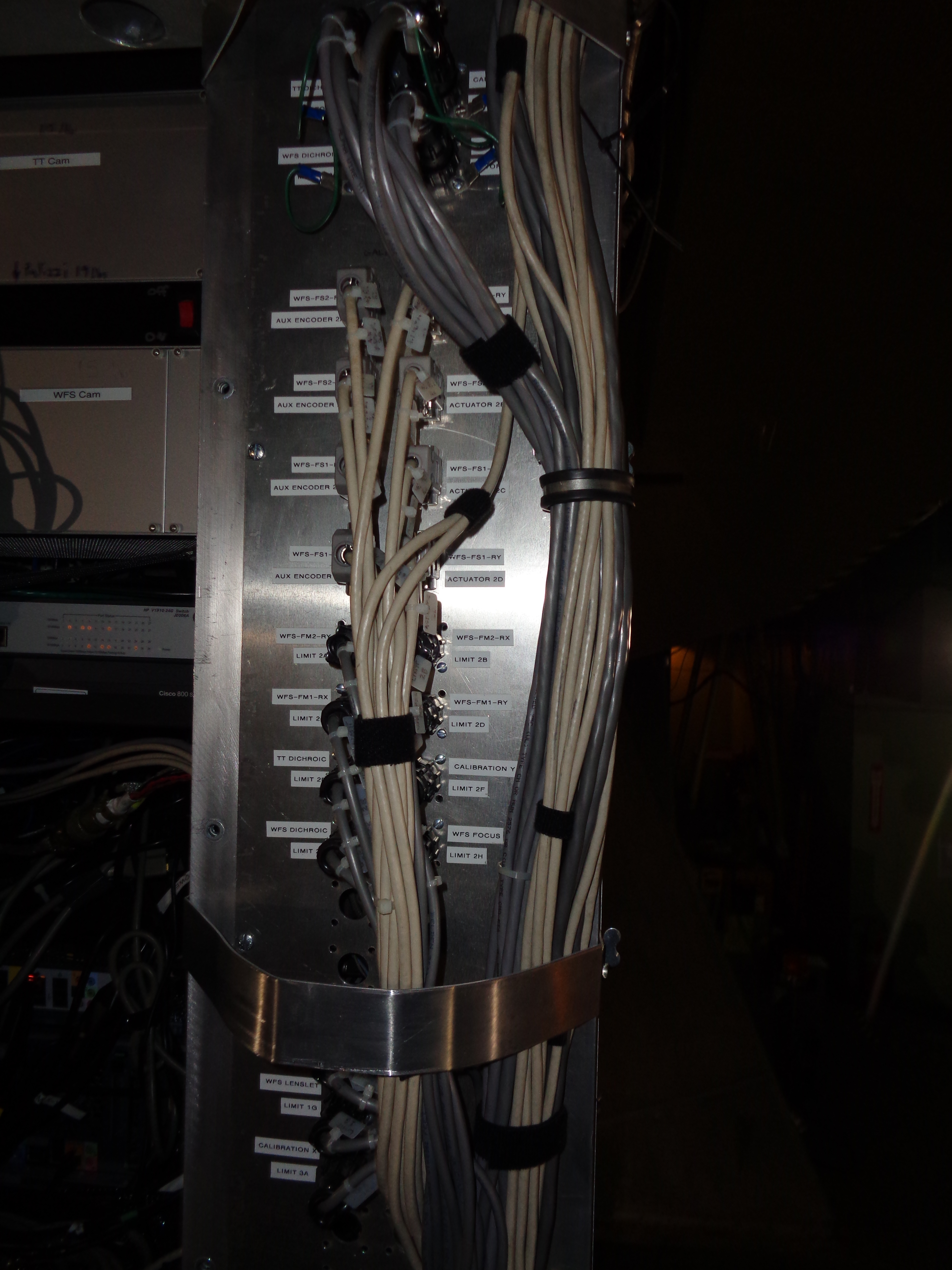

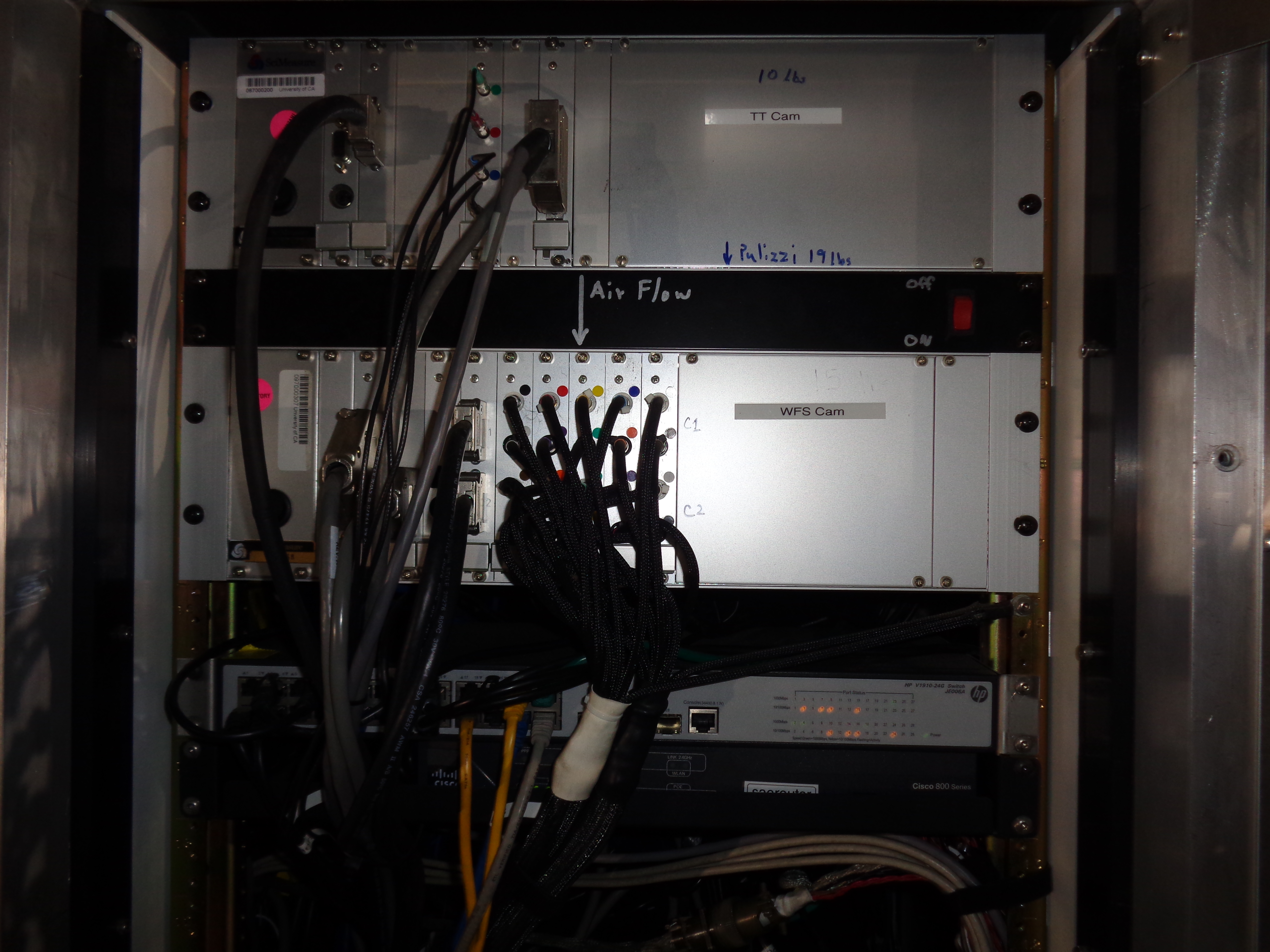

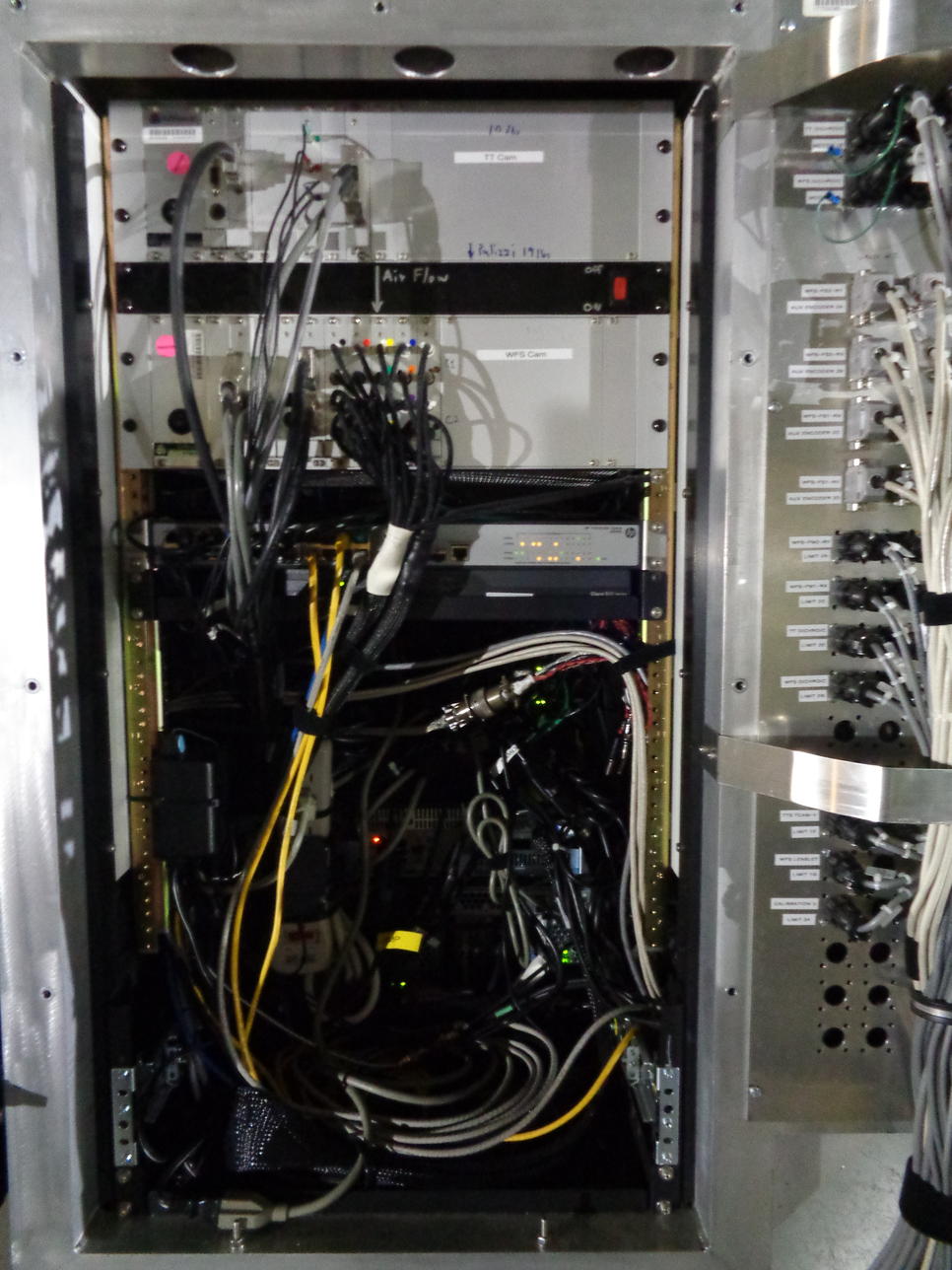

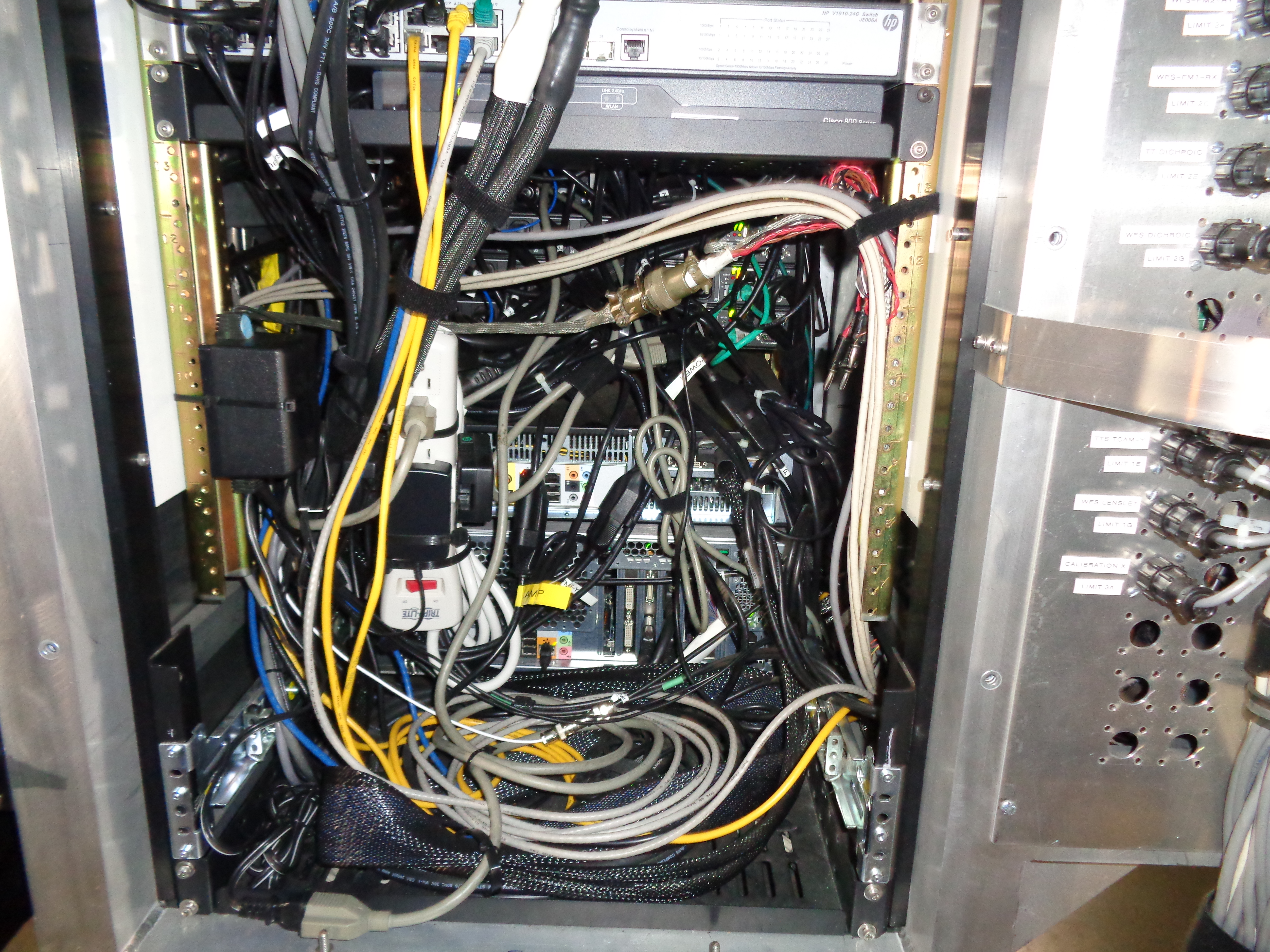

Electronics Rack: North

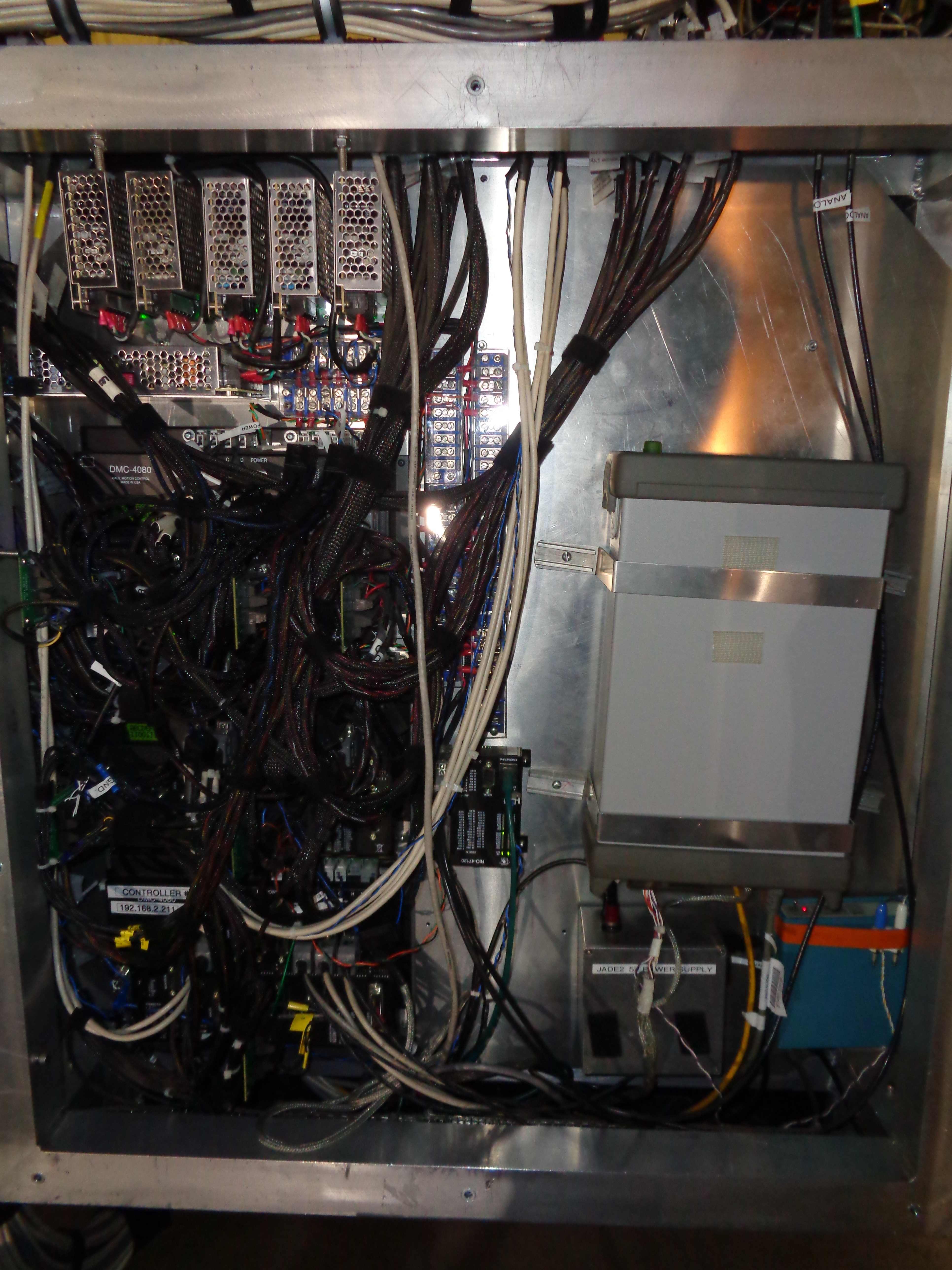

Electronics Rack: West

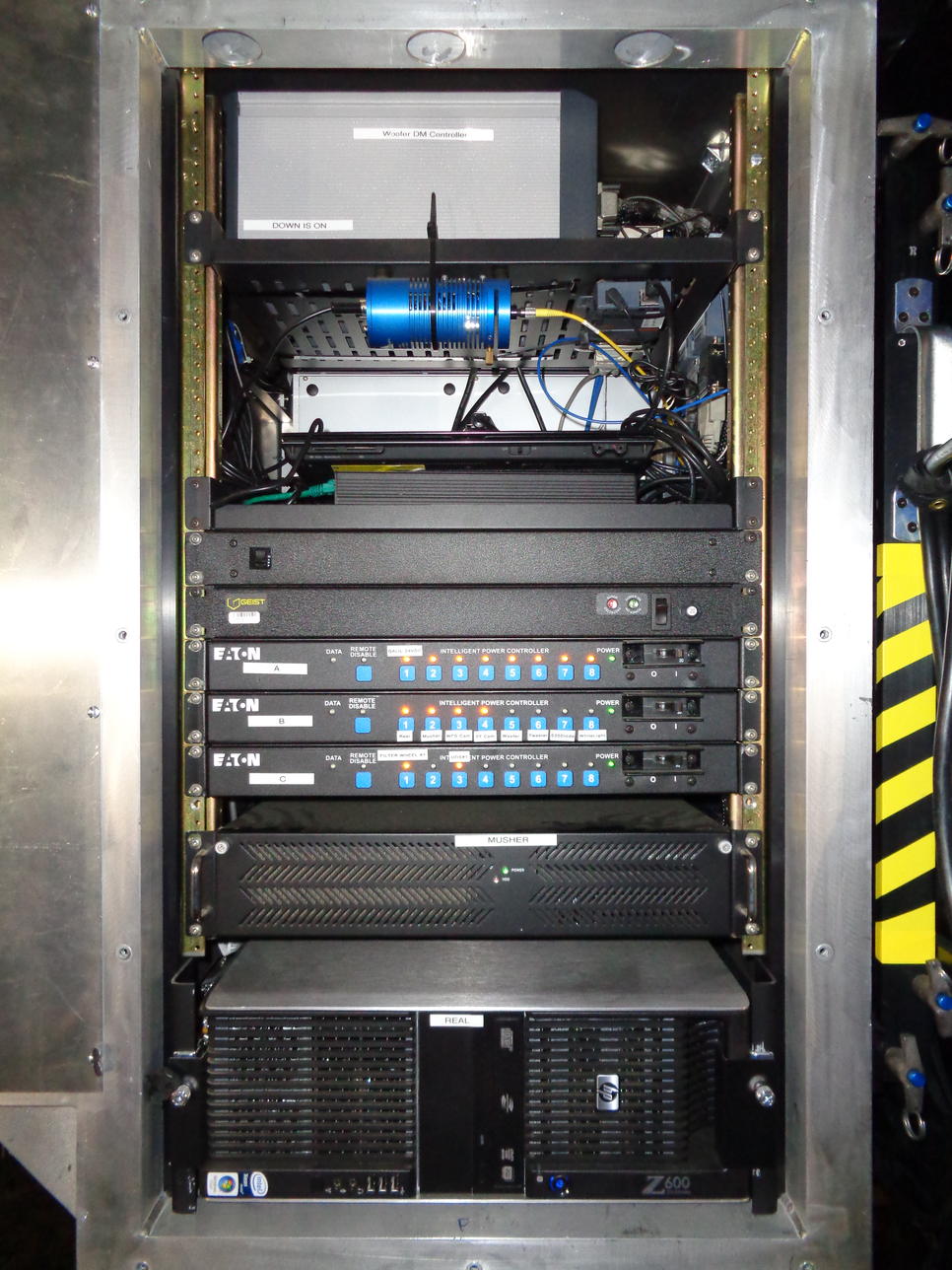

Electronics Rack: South

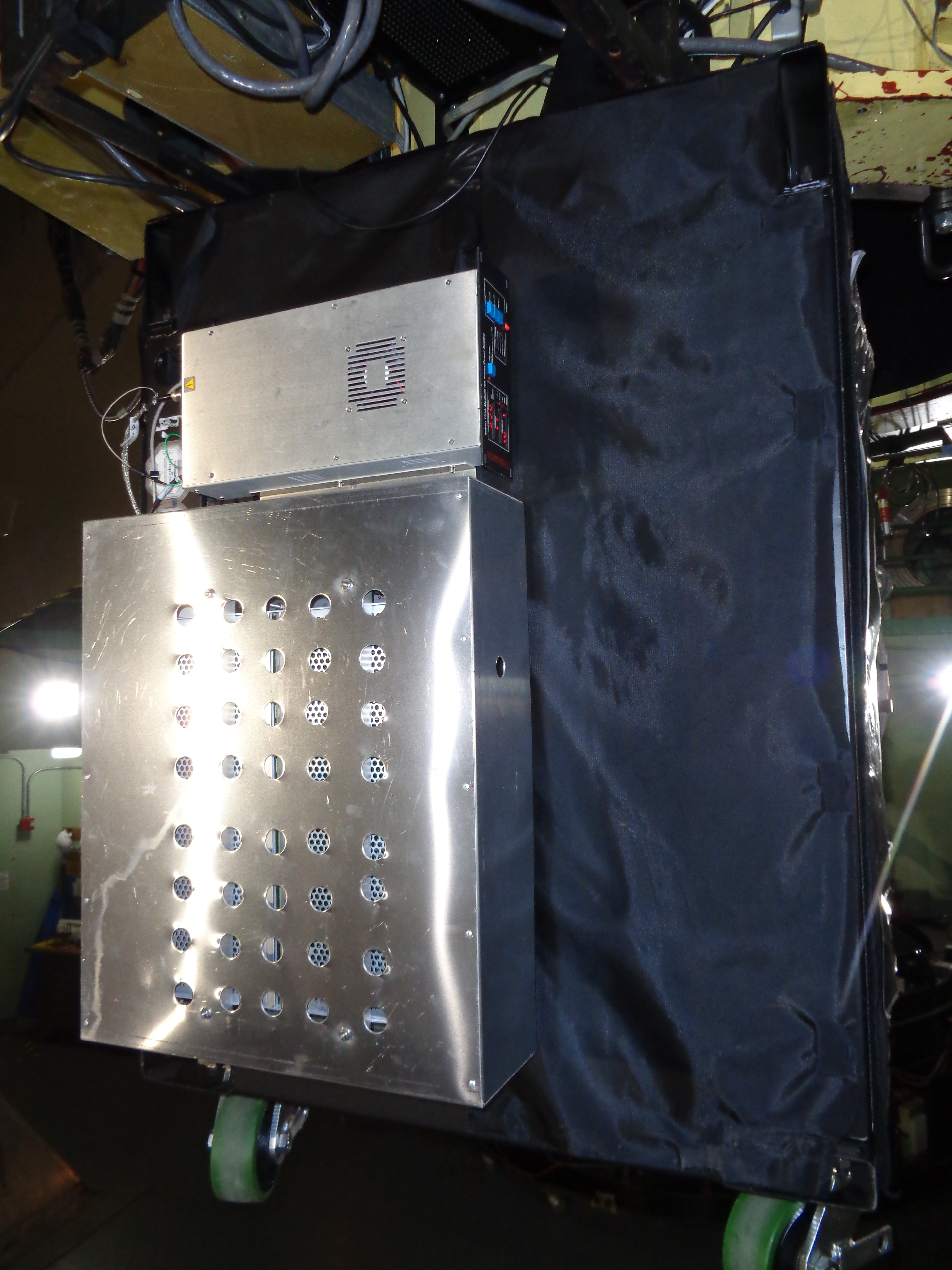

Electronics Rack: East
Change Log:
- 2024-03-02: Updated.
- 2019-02-21: Updated.
- 2018-11-26: First version.
