Feature: Laser Shutdown Monitor (LSM)
The Laser Shutdown Monitor (LSM) is mandatory for Laser Guide Star (LGS)
operations.
Prerequisites:
Corequisites:
-
EventSounds — To render cues sent by LSM audible.
Launch:
-
Post-2017-03-13 (temporary):
LSM.tcl — Issue command at the user@shard > prompt.
-
Pre-2017-03-13:
LSM.tcl — Issue command at the user@shred > prompt.
Or,
xterm on shred — Open window on shard (e.g. using workspace/pull-down menu).

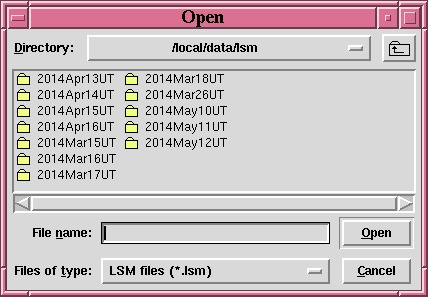

Load:
-
File — Select menu item.
-
Read — Select menu item.
-
Navigate to appropriate UT date-stamped directory (e.g. /local/data/lsm/2014Apr13UT).
-

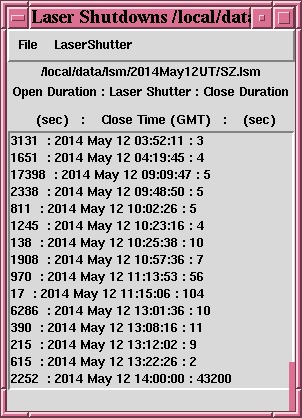

Highlight desired file (e.g. SZ.lsm).
-
Open — Open desired file.
Terminate:
-
File — Select menu item.
-
Exit — Select menu item.
Change Log
- 2017-03-13: Updated (Temporary return to shard).
- 2016-11-10: Updated (shred replaces shard).
- 2014-05-13: Updated.
- 2014-05-09: First version.
|
