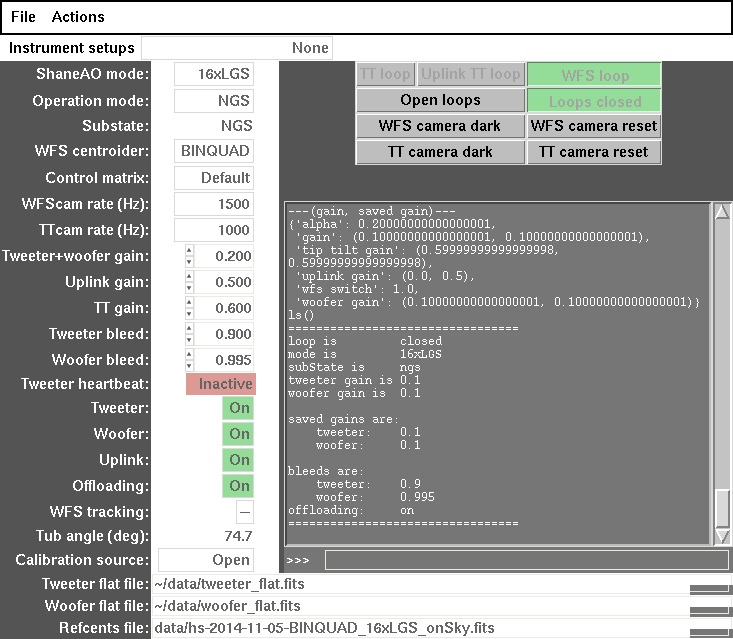

Feature: Loop Control GUI
Starting ShaneAO Loop Control GUI
-
In xterm on shred.ucolick.org: saocon_gui.
Known Problems/Solutions
Standard/default Configuration
|
WFS centroider:
|
BINQUAD
|
|
Control matrix:
|
Default
|
|
WFScam rate (Hz):
|
500
|
|
TTcam rate (Hz):
|
500
|
|
Tweeter+woofer gain:
|
0.6
|
|
Uplink gain:
|
0.5
|
|
TT gain:
|
0.6
|
|
Tweeter bleed:
|
0.900
|
|
Woofer bleed:
|
0.995
|
|
Refcents file:
|
(Re-)generate According to Prevailing Seeing
|
Poor Seeing (>2.5 arcsec) Configuration
Change Log
- 2016-11-10: Updated (shred replaces shard)
- 2014-05-09: First version
|
