Feature: Peeko/TT Peeko

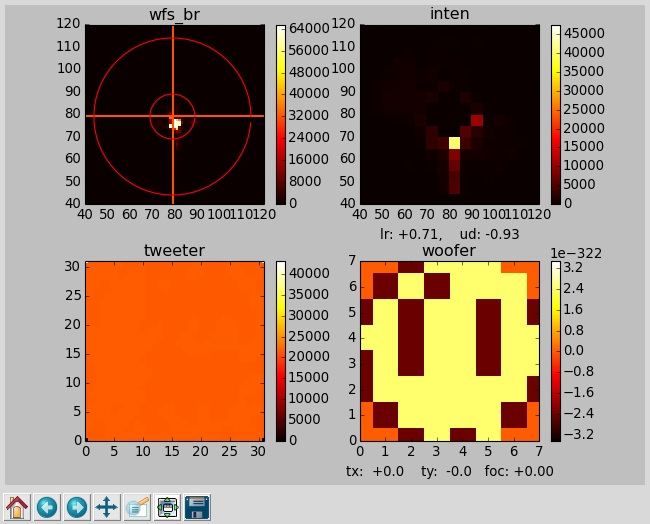

Feature: Peeko/TT Peeko (with WFS in Pyramid position 2020-10-27)

Starting Peeko

1. In workspace, click left mouse button. Select Peeko from resulting menu.
2. user@real.ucolick.org > peeko
3. Acquire new background: WFS camera dark/dark()
4. Recommend set automatic display scaling: drange('auto').
5. Recommend: zoom().
6. Recommend enable overlay: alines().

Starting TTPeeko

1. In workspace, click left mouse button. Select TTPeeko from resulting menu.
2. user@real.ucolick.org > ttpeeko
3. Acquire new background: TT camera dark/ttdark()

Peeko Commands


   mode='16x'         -- sets Peeko defaults for 16x mode
   mode='8x'          -- sets Peeko defaults for 8x mode
   zoom()             -- set the wfs and inten displays to zoomed
   alines()           -- overlays aperture guide lines
   wfs_only()         -- display only the wavefront sensor
   all4()             -- show all the displays (counters wfs_only())
   drange()           -- set the display range for one or all displays
   e.g. drange('auto')
   e.g. drange('woofer','auto')
   e.g. drange('wfs'(1500,55000))
   -- Adjust WFS display between lower (e.g. 1500) and upper (e.g. 55000) cut.
   e.g. drange('inten',(0,10000))
   -- Display intensity grid.
   e.g. drange('woofer',(-1,1))
   -- Fix display range
   exit()             -- exit the display

   wfs_br()           -- replaces the obselete wfs_bg() Background removed
   wfs_bg()           -- change the wfs display from raw to background-remomved
   wfs_raw()          -- shows raw counts in WFS display
   wfs_ma()           -- shows moving average in WFS display

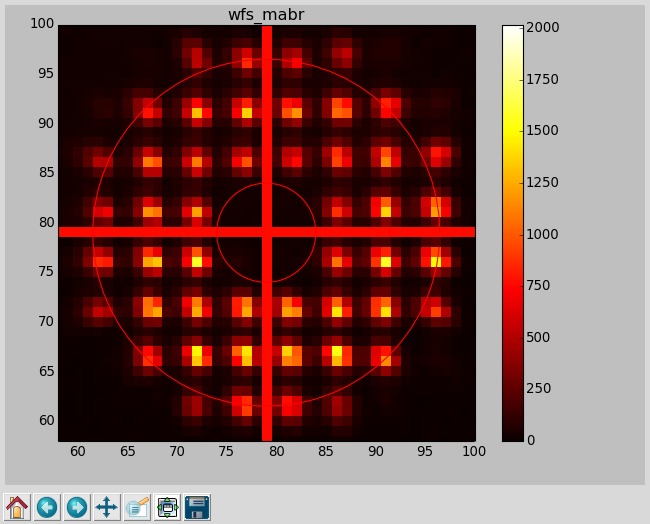

   wfs_mabr()         -- shows moving average, background removed in WFS display
   wfs_maff()         -- shows moving average, flat fielded

   pick()             -- place indicative box in TT Peeko display
   hist()             -- display a histogram of the actuator values
   stats()            -- reports the number of saturated actuators
   help()             -- get help on peeko commands
   state()            -- print the state of the real-time code
   unzoom()           -- set the wfs and inten displays to unzoomed
   update()           -- set the update interval, in milliseconds
   sethost()          -- set the host machine
   start()            -- start (or restart) the peeko display

   connect()          -- connect to the real-time code (same as restart)
   fid()              -- turn on or off fiducials
   cmap()             -- change the color map for one or all displays


TT Peeko Commands


   display('tts')    -- basic display
   display('tts_ma') -- moving average
   compass()         -- display a compass indicator for TUB=74
   compass(X)        -- display a compass indicator for TUB=X
   hide_roi()        -- Remove overlay region of interest (box).
   show_roi()        -- Overlay region of interest (box).


Re-size Region Of Interest (ROI) Box in TT Peeko

>>> tt_roi()

To re-size the region of interest, the following convention is used:

>>> tt_roi([xcen,ycen],[xdimension,ydimension])

For example:

>>> tt_roi([49,37],[10,10])

A limitation demands that even numbers MUST be used for box dimensions.

Change Log:

2022-01-21: Startup of peeko set to automatically do wfs_br() and alines() and ttpeeko to do display(’tts_br’) and compass().

2017-10-06: Updated Region of Interest instructions.

2014-05-13: First version.
