Image Sharpening
Introduction
Image sharpening procedure for afternoon optimization and on-sky optimization.
Standard Procedure:
-
Configure calibration source: In Shane AO motor control Set Cal Y stage in
-
Configure filters: FeII
-
Configure detector window: start x = 1150, end x = 1249, start y = 650, end y = 749.
-
Configure exposure parameters:
Filter = Fe II;
NCoadds = 3;
Exposure = 0.2 s.
-
-
user@covert > scriptproc.tcl
-
File..., Source..., imagesharpen.tcl
-

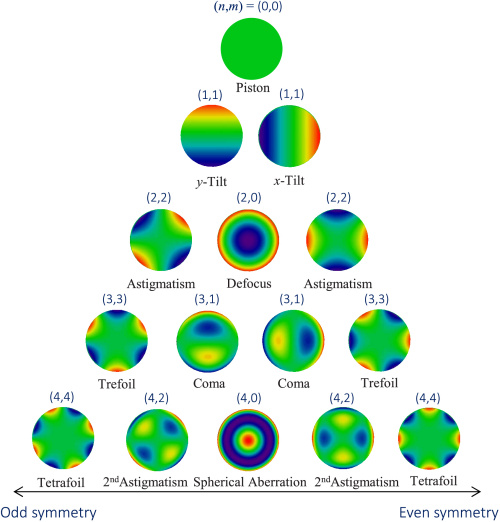

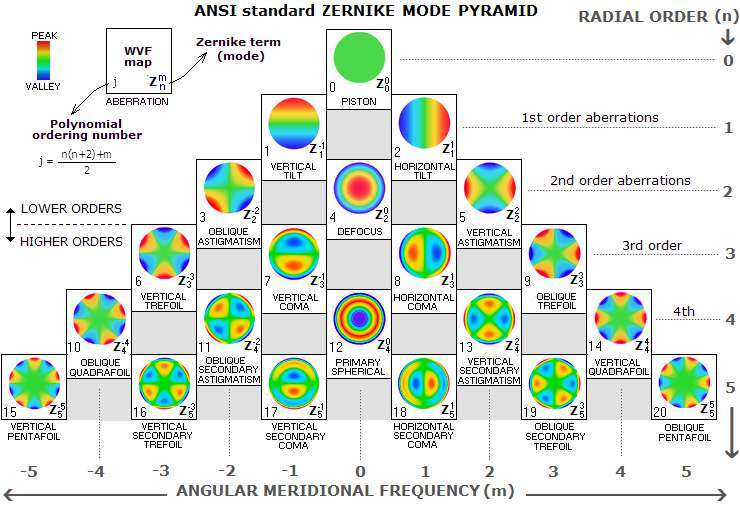

Select/unselect desired Zernike modes and hit Go
-
Enter Hartman Slider file name (e.g. hs-20XX-XX-XX-<mode>),
where <mode> can be
cog (centre of gravity);
bin (binned pixels);
quad
and Save.
File is written to: gavel@real:/u/gavel/data/ and should
be appended with a text string corresponding to the mode
(e.g. _16xLGS.fits or _8xLGS.fits.
-
gavel@real.ucolick.org > ls -lrt /u/gavel/data - check
the latest file written.
-
gavel@real.ucolick.org > genSkyRefcents <mode> <file> - Create reference centroids file for on sky operations for each mode, where mode can be either 16x or 8x.
-
gavel@real.ucolick.org > ls -lrt /u/gavel/data - check
the latest file written, the latest file should be appended with
a text string _onSky.fits
Back-up Procedure:
Should the standard procedure be unsuccessful, the following back-up procedure
can be performed:
-
...
-
...
-
...
-
...
Reference(s):
Appendix
Verbatim content of relevant extract.
|
